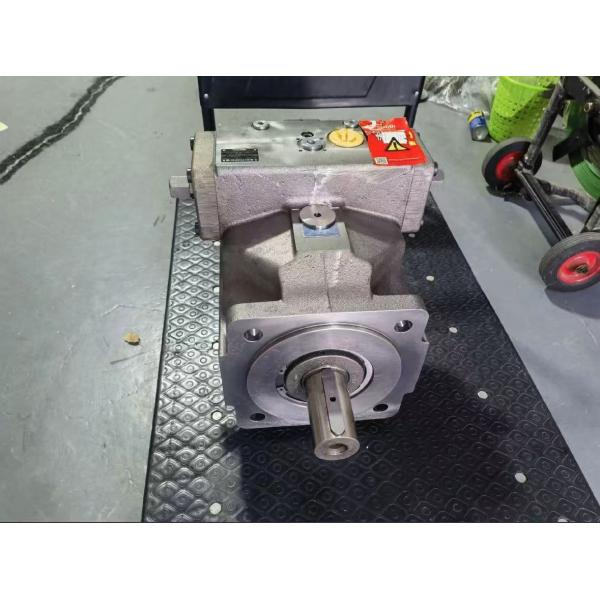

Rexroth A4VSO250 Series Hydraulic Pump
Product Models
A4VSO250DRG/22R-VPB25N00, A4VSO250DRG/22R-VZB13N00, A4VSO250DRG/22R-PZB13N00, A4VSO250DRG/22R-VPB13N00, A4VSO250DRG/22R-PPB13N00
Product Description
Industrial high-pressure variable displacement pump from Rexroth, Germany. Designed for demanding hydraulic appliions in machinery repair shops.
Specifiions
| Brand Name | Rexroth |
| Place of Origin | Fujian, China |
| Warranty | 12 Months |
| Material | Iron |
| Condition | Original |
| Quality | 100% Tested Great Performance |
| Certifiion | ISO |
| Feature | Long Life, Low Noise |
| Power | Hydraulic Power |
| Payment Term | T/T 100% |
Related Part Numbers
| Part Number | Model |
| R902434774 | AA4VSO250DFR/30R-PPB25N00 |
| R902532229 | AA4VSO250DFR/30R-PPB25U04 |
Frequently Asked Questions
Flow instability and pressure fluctuations
Flow instability, often accompanied by pressure fluctuations, is frequently related to issues within the control piston mechanism. This can be due to contamination scratching the control piston, a weak or damaged control amplifier spring, or other damaged components. Addressing this usually requires disassembling the pump to inspect, repair, or replace the affected parts, and possibly increasing damping or spring stiffness.
External oil leaks
External leaks can originate from:
- Shaft Seal: Damaged or worn-out shaft seal
- Pipe Connections: Loose hose connections, damaged fittings, or aged/cracked sealing washers
- Case Ports: Leaks from the variable mechanism cover bolts due to loose bolts or damaged seals
- Case Imperfections: Rarely, sand holes in cast iron casings or poor welds
- High Case Pressure: Excessive internal leakage can pressurize the case, damaging seals or pushing them out
Bearing flushing requirements
Bearing flushing is recommended for: using special HF fluids, operating at viscosity/temperature limits, or for pumps installed vertically (shaft up). Refer to technical documentation for specific flow rates, which range from ~3 L/min for size 40 to ~40 L/min for size 1000.
Long-term storage procedures
If the pump is to be stored for an extended period:
- Drain all hydraulic fluid from the pump casing
- Perform a thorough cleaning and drying
- Apply a rust preventive agent
- Store in a dry, ventilated place
- Before putting back into service, perform a comprehensive inspection and maintenance check
